Used 2004 Hermle 5-Axis Machining Center
Subject to availability, and furthermore subject to the terms and conditions of EMT Sales Agreement.
The machine was produced in the Black Forest at Maschinenfabrik Hermle AG in Gosheim, Germany, a globally recognized manufacturer of high-precision 5-axis machining centers.
Additionally, this machine is equipped with the HEIDENHAIN iTNC 530 CNC control, including a hand-held electronic handwheel control unit for precise manual operation.
This machine previously operated in a high-tech manufacturing environment, and consequently it remains in excellent overall condition.
Year Built…………………………………………….. 2004
Axis Travels / Work Area
X-axis……………………………………………………. 25.6″ (650 mm)
Y-axis……………………………………………………. 23.6″ (600 mm)
Z-axis……………………………………………………. 19.7″ (500 mm)
Overall, this compact yet capable work envelope makes the machine well suited for precision 5-axis machining applications.
Spindle Specifications
Spindle speed range………………………………. 20 – 18,000 rpm
Spindle taper……………………………………………. HSK-A63
Spindle output…………………………………………. 20 HP (15 kW)
Spindle torque………………………………………… 96 lb/ft (130 Nm)
Spindle diameter at front bearings……………. 2.76″ (70 mm)
Also, this spindle configuration provides high-speed milling performance combined with excellent torque capability.
Tool Changer System
Tool changer…………………………………………….
32 tool pockets + additional magazine with 87 pockets
Total ATC capacity…………………………………. 119 tools
The expanded tool magazine provides substantial tool capacity for complex unattended machining operations.

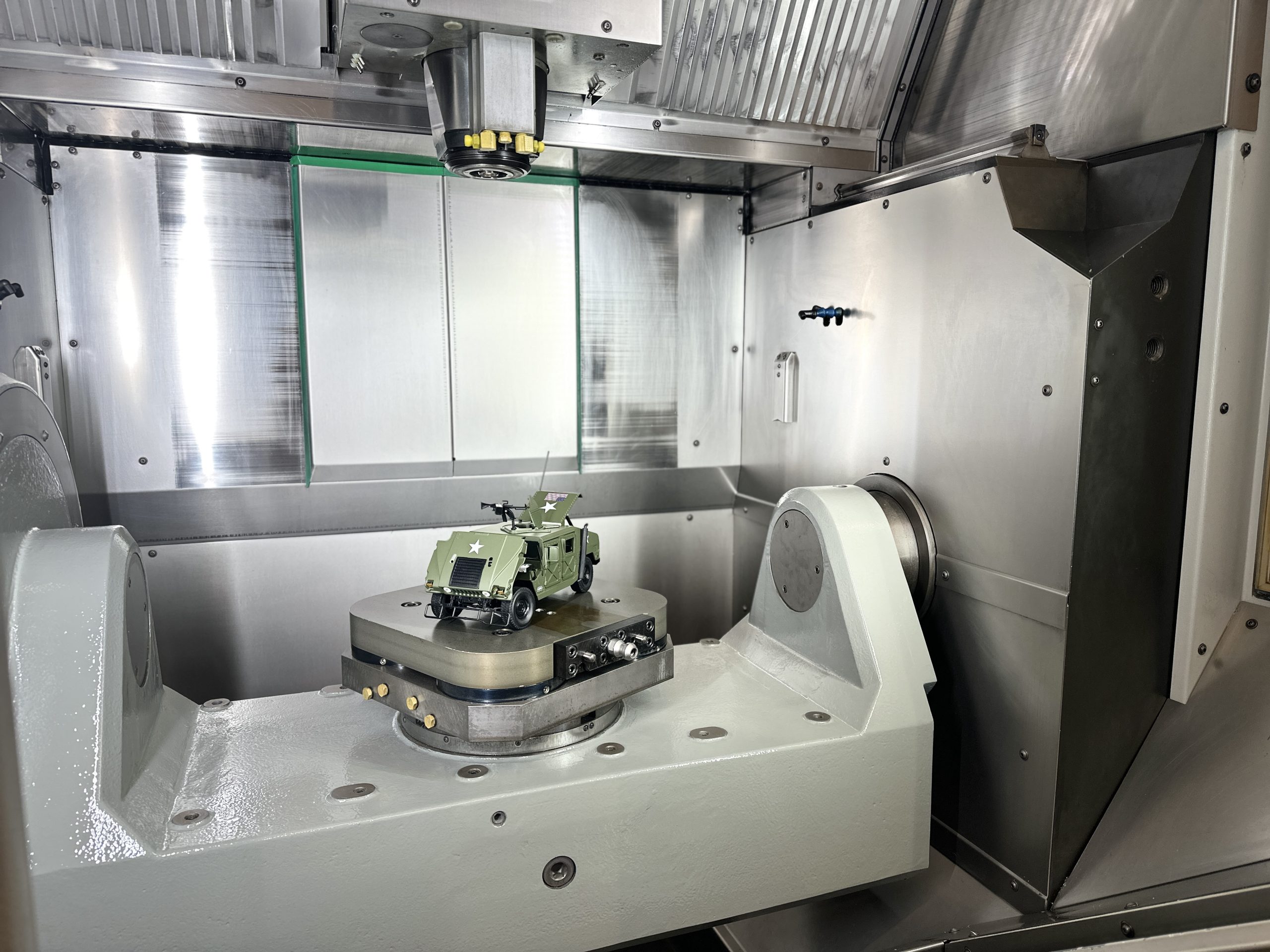

NC Swiveling Rotary Table (5-Axis)
NC swiveling rotary table diameter……………. 11.02″ (280 mm)
Upper clamping plate size…………………………
15.7″ x 15.7″ (400 mm x 400 mm) – EROWA MTS pallet
Load capacity of NC swiveling rotary table… 661 lbs (300 kg)
Maximum swing between trunnion flanks….. 32″ (813 mm)
Table C-axis rotation range……………………….. 360° x 0.001° (Full 4th axis)
Table A-axis swivel range………………………….
230° (±115°) – Full 5th axis capability
Speed of tilting A-axis……………………………….. 25 rpm
Speed of rotary C-axis……………………………… 40 rpm
Thus the integrated trunnion design allows simultaneous 5-axis machining for complex multi-surface components.
Linear Motion Performance
Linear rapid traverses (X/Y/Z)…………………. 1,772 IPM (45 m/min)
Linear acceleration………………………………….. 236 in/sec²
As a result, the machine delivers fast positioning speeds and dynamic machining capability.
Machine Construction
Mineral casting machine base
Approximate machine weight…………………… 20,944 lbs (9,500 kg)
Also, the mineral casting base helps provide excellent vibration dampening and machining stability.
Precision Measurement Systems
HEIDENHAIN linear glass scales direct measuring in X/Y/Z axes
Resolution……………………………………………………. 0.1 µ
HEIDENHAIN rotary encoders direct measuring in 4th and 5th axes
Resolution……………………………………………………. 0.1 µ
Accordingly, these precision measuring systems provide extremely accurate positioning and repeatability.
Standard Equipment
- Coolant tank unit
- Scraper chip conveyor
- Machine light
- Fully enclosed cabin enclosure
- Spindle air blast
- Orientation spindle stop (M19)
- Helical interpolation
- Rigid tapping
- RS-232 port and Ethernet port
- External spindle chiller
- Electronic temperature compensation
- Leveling shoes
- Spray pistol
- Linear scale air protection
- Auto opening door with push button operation
- Books, manuals, and technical documentation are included with the machine.
Probing and Tool Measurement
RENISHAW infrared parts measuring touch probe
BLUM laser tool measuring system for:
• Tool length measurement
• Tool diameter measurement
• Broken tool detection
These systems significantly improve setup efficiency and machining accuracy.
Pallet System
5 × EROWA MTS pallets
Size……………………………………………………. 400 mm x 400 mm
Additionally, the pallet system allows efficient workholding and quick setup changes.
Automation Preparation
Automation preparation for robot loading/unloading, including:
• Table clamping system
• Automatic machine door operation
Machine can easily be integrated into automated production environments.
Machine Utility Requirements
Power input…………………………………………….. 400V / 60 Hz
Power required……………………………………….. 43 KVA
Air required……………………………………………… 87 PSI (6 bar)
Inspection and Sales Information
Machine is offered subject to availability, prior sale, and terms & conditions of European Machine Tools Sales Agreement.
All details listed above are deemed correct to the best of our knowledge; however, it remains the buyer’s responsibility to verify all specifications.
Accordingly, we encourage an under-power inspection of the machine(s) and accessories prior to purchase.
