DMG MORI monoBLOCK Machine Design
monoBLOCK 5-Axis Machining

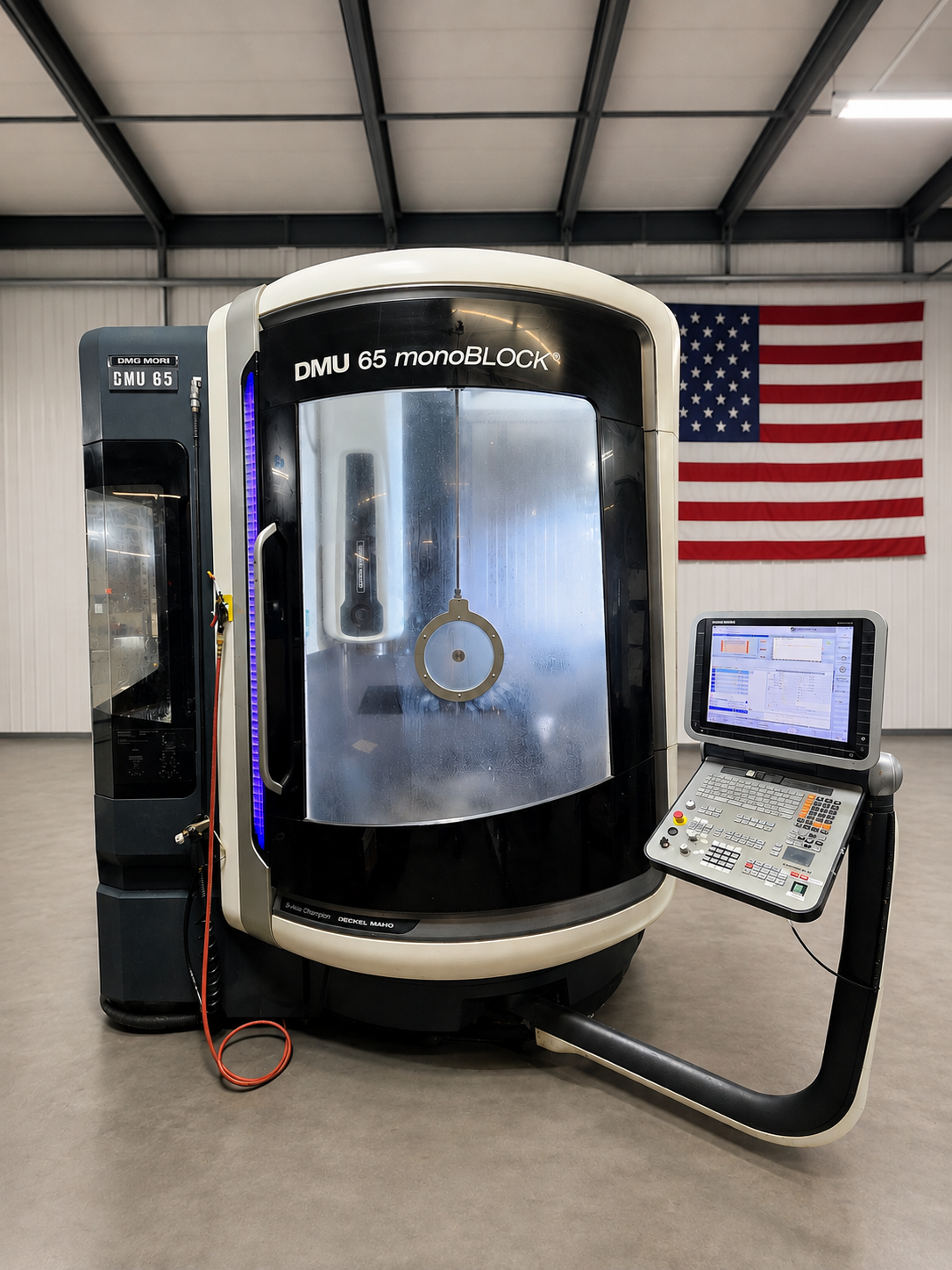

Pre Owned 2016 DMG MORI DMU 65 monoBLOCK 5-Axis Machining Center

Used 2016 DMG MORI DMU 65 monoBLOCK 5-Axis Machining Center for Sale

Machine Overview

The DMG MORI DMU 65 monoBLOCK is one of the industry’s most respected 5-axis machining centers, engineered to provide outstanding precision, thermal stability, and machining performance. Its monoblock machine design, combined with FEM-optimized construction and high static mass, minimizes vibration while maximizing rigidity during demanding machining operations.

This 2016 model is equipped with the upgraded 20,000 RPM SpeedMaster motor spindle, providing higher spindle speeds than the standard configuration for improved performance on aluminum, stainless steel, titanium, and complex contouring applications. The generous work envelope, high table capacity, and simultaneous 5-axis capabilities make the DMU 65 monoBLOCK ideal for both prototype and production machining.

Specifications

  • Manufacturer: DMG MORI
  • Model: DMU 65 monoBLOCK
  • Year: 2016
  • Machine Type: 5-Axis Vertical Machining Center
  • X-Axis Travel: 735 mm
  • Y-Axis Travel: 650 mm
  • Z-Axis Travel: 560 mm
  • Working Volume: 268 dm³
  • Rotary Table Diameter: 650 mm
  • Table Size: 800 x 650 mm
  • Maximum Table Load: 600 kg (rotary) / 1,000 kg
  • Maximum Workpiece Diameter: 840 mm
  • Maximum Workpiece Height: 500 mm
  • Spindle Speed: 20,000 RPM SpeedMaster (15,000 RPM Standard)
  • Spindle Taper: HSK-A63
  • Spindle Power: 35 kW
  • Spindle Torque: 130 Nm

Features & Equipment

  • Simultaneous 5-Axis Machining
  • DMG MORI monoBLOCK Machine Design
  • Upgraded 20,000 RPM SpeedMaster Motor Spindle
  • HSK-A63 High-Speed Spindle Interface

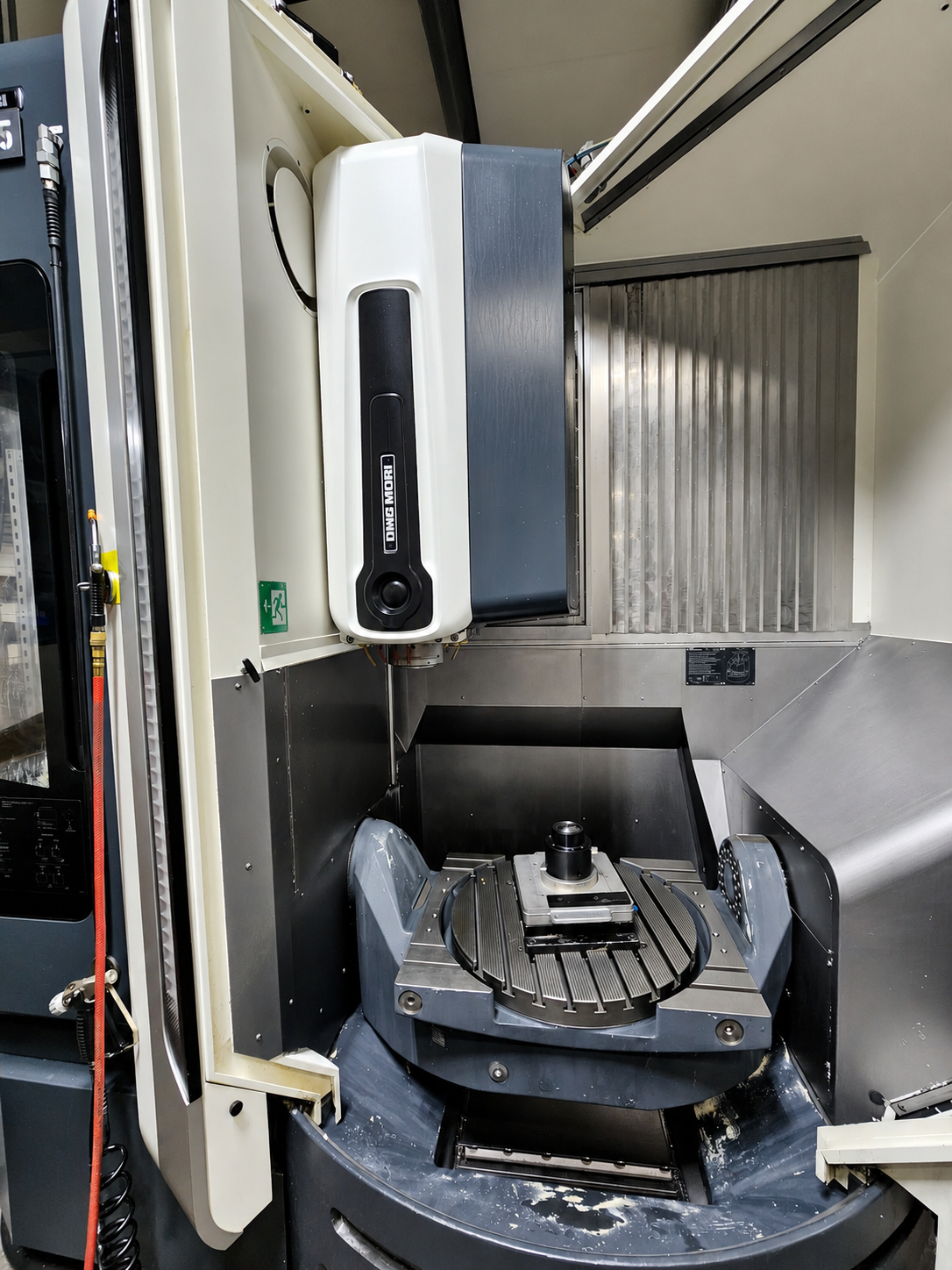

  • 650 mm Swiveling Rotary Table
  • High-Rigidity Machine Construction
  • FEM-Optimized Machine Frame
  • Excellent Thermal Stability
  • High Dynamic Machining Performance
  • Designed for Precision Milling and Complex Contouring
  • Ideal for Production and High-Accuracy Applications

Applications

The DMG MORI DMU 65 monoBLOCK is well suited for machining:

  • Aerospace Components
  • Medical Device Components
  • Automotive Parts
  • Mold & Die Components
  • Precision Tooling
  • Prototype Development
  • Complex 5-Axis Parts
  • General Precision Machining
  • High-Performance Aluminum and Steel Components

Availability

Status: Call for latest inventory

PH: 262.327.0800

Inspection: Machine is available for inspection under power by appointment at our Wisconsin showroom.

Note: Machine is subject to prior sale and terms outlined in the European Machine Tools Sales Agreement. Video demonstration available upon request.
