HERMLE 5 AXIS

We have Multiple Hermle Machines in Stock.

We only Buy & Sell Machines with Low Hours and with PM Performed.

Aprox:7300 Hr on Spindle Run.

Certification Verifications By EMT Hartland

Manufacturer: Hermle

C600U Build in Gosheim / Germany.

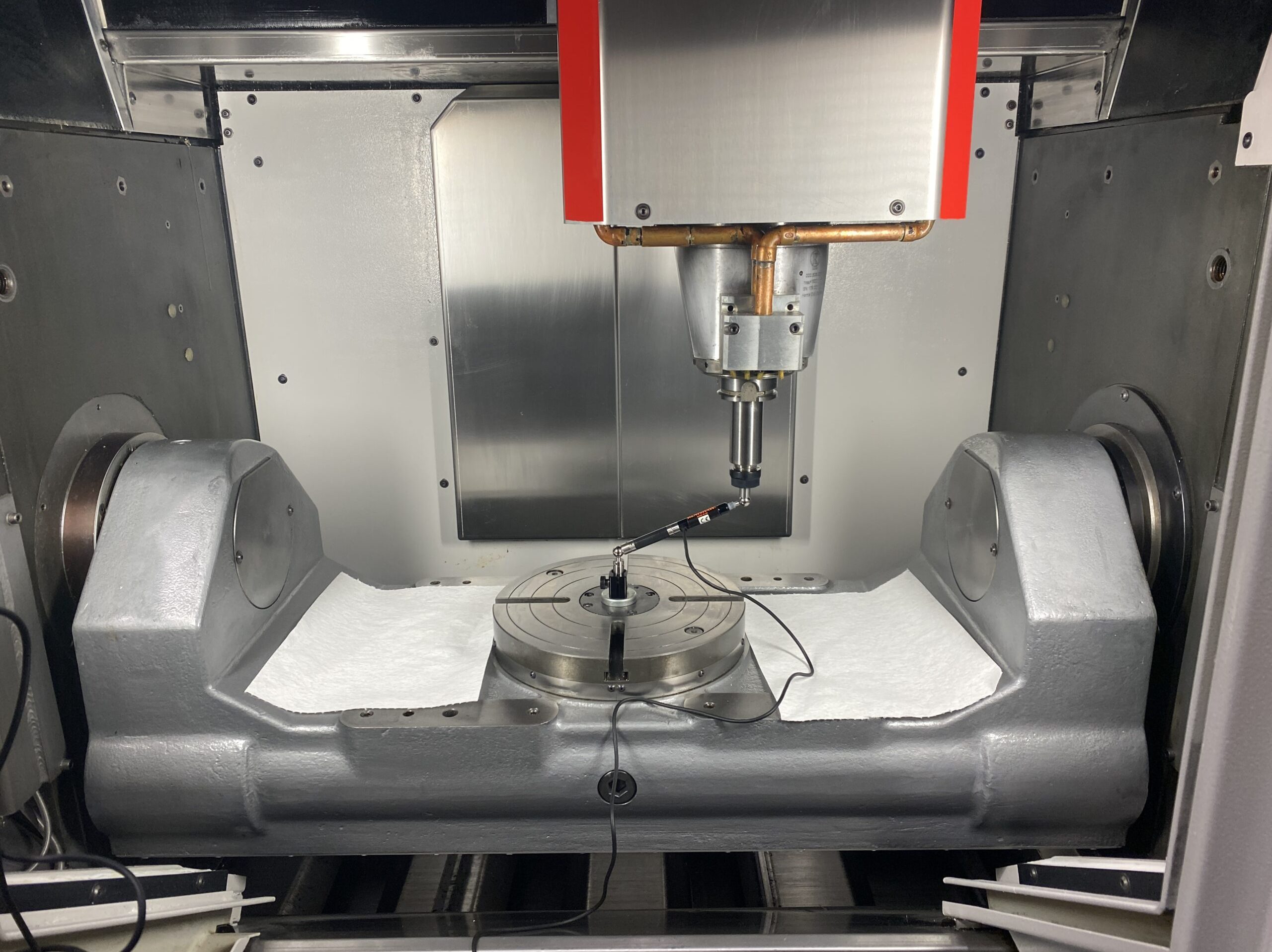

Geo Test and Ball Bar Test, Geo-Test

Heidenhain – TNC 530 CNC Control

Machine Travels

X 23.622″

Y 17.717″

Z  17.717″

Rapid Traverse

X/Y/Z 1,377 IPM

5-Axis Table Style Trunnion Style Table

Table Size 11.024″ (280mm) Diameter Work Table

(Optional you can put Larger table top on the machine)

5th Axis Swivel Range +/- 110.1 Degrees

Spindle Drive 20 HP

Tool Changer Capacity 30 Tool Stations

Tool Change Time 5.5 Seconds (Chip to Chip)

Equipped With:

Heidenhain iTNC-530 CNC Control,

NC Programmable Swiveling Trunnion Table,

Max Spindle Speed, 16,000 RPM

HSK-A63 Spindle Taper,

30 Station Automatic Tool Changer,

Rigid Taping,

Tool-Life Monitoring,

Ethernet Connection,

Electronic Jog Handwheel,

Electronic Thermal Compensation,

Laser

Renishaw Parts Probe,

Coolant System,

with Chip Conv.

Books

Chip-Panel

Spray Nozzle

Machine Light

Machining Area Enclosure .

Level- Shoes

Approximate Machine Dimensions: 124″l x 98″w x 94″h

Approximate Weight: 13,700 lbs.

In Stock at European Machine Tools Wisconsin,

F.O.B: European Machine Tools Wisconsin
