5th AXIS- 96mm Pneumatic Chuck (Side-Port) | RL96P-67B

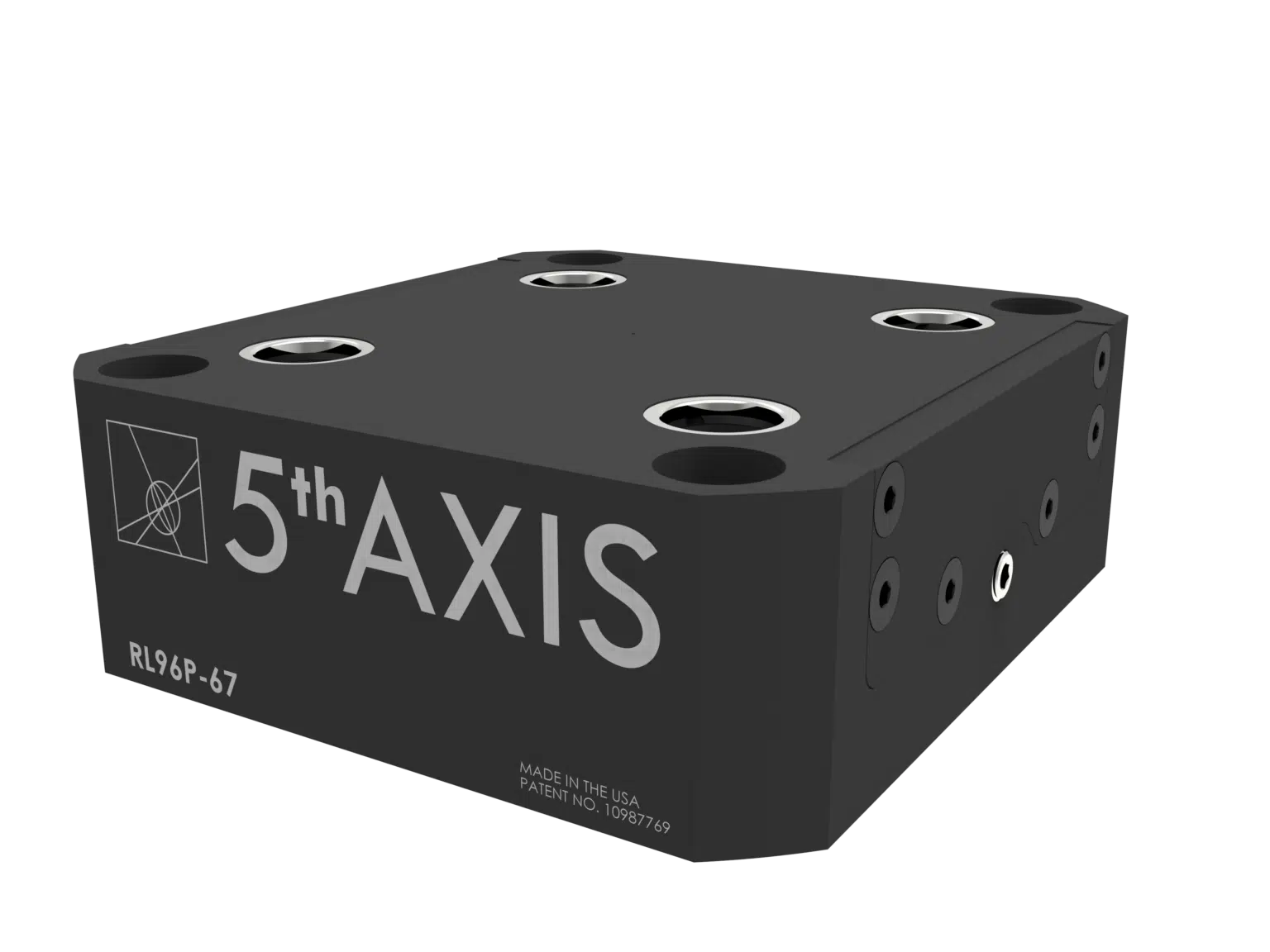

The 96mm Pneumatic RockLock™ Chuck (Side-Port) – RL96P-67B is a compact and efficient workholding solution designed for reliable clamping in precision machining applications. Built for manual operation, this unit delivers consistent performance with a simple air-to-open and spring-to-close mechanism.

Its side-port configuration allows for flexible integration into various fixturing setups, making it ideal for streamlined production environments.

Specifications

Model: RL96P-67B
Chuck Size: 96 mm
Pull Stud Spacing: 96 mm
Operating Pressure Range:
• Minimum: 80 PSI (0.55 MPa)
• Maximum: 130 PSI (0.86 MPa)
• Operation Type: Air to open / Spring to close
• Port Configuration: Single port for clamp/unclamp
• Design: Side air port
• Functionality: No cleaning air or clamp confirmation

Availability

Call European Machine Tools for the latest inventory and availability!
