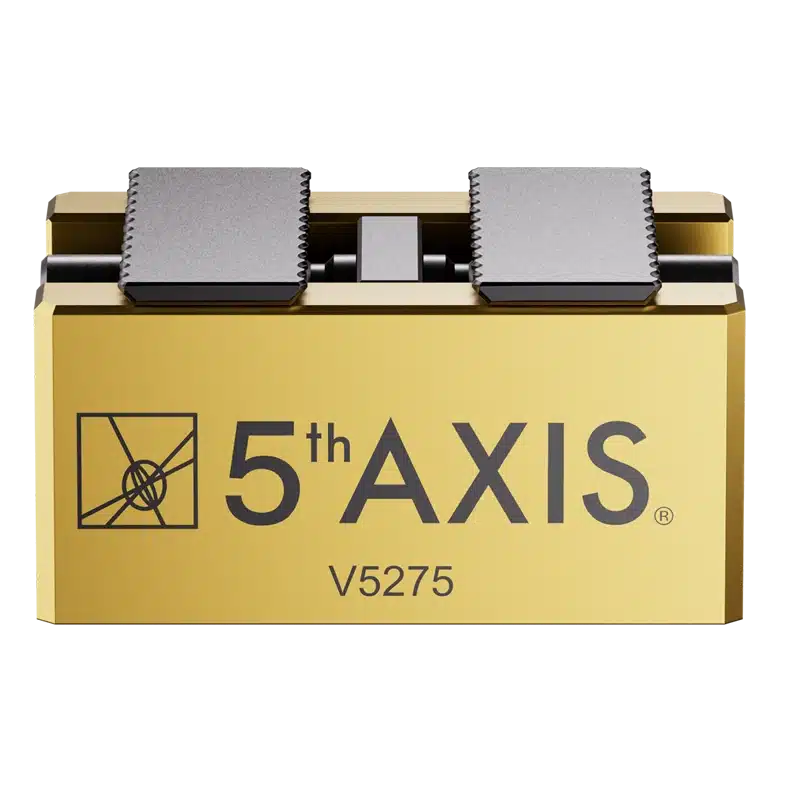

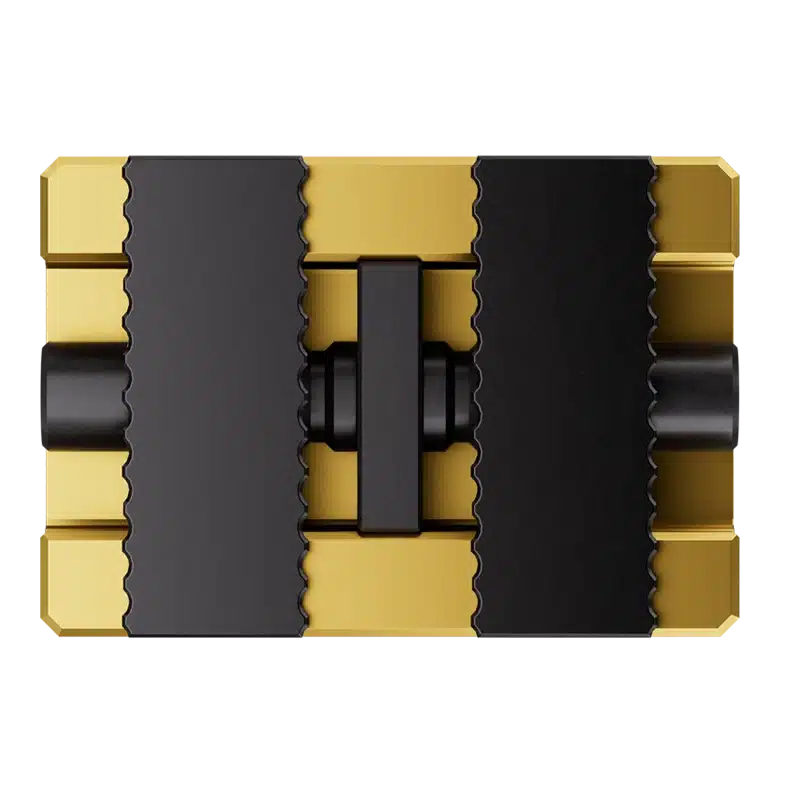

5th AXIS Compact Self-Centering Mini Vise – 52mm x 75mm x 38mm | V5275

The Compact Self-Centering Mini Vise V5275 is a high-precision workholding solution designed for small-part machining, 5-axis applications, and tight work envelopes. Engineered for accuracy and repeatability, this vise ensures consistent centering and secure clamping in demanding CNC environments.

Specifications:

• Size: 52mm x 75mm x 38mm
• Jaw Width: 51.5mm
• Clamping Force at Max Torque: 2,500 lbf @22ft-lbs (11.1KN @30Nm)
• Clamping Range: 3.5mm to 38.5mm
• Max Torque: 22ft-lbs (30Nm)
• Truck/Jaw Hardness: 45 HRC
• Hardness Clamping Max (part): 25 HRC – dovetail advised for anything harder
• Self-Centering Accuracy: Within ±.002”
• Weight: 1.76 lb.
• Dovetail Stock Prep: Refer to the D05125 dovetail guide on the website
• Shipping Weight: 2 lbs
• Crate Dimensions (in): 5 × 5 × 3

Availability

Call European Machine Tools for the latest inventory and availability!

European Machine Tools – Hartland, Wisconsin
262.327.0800

Subject to availability and terms and conditions of EMT Sales Agreement.
