5-Axis CNC Machining Center – Heidenhain TNC 640 Control
Machine Overview
The 5-axis CNC machining center with Heidenhain TNC 640 control is designed for high-precision multi-axis machining and advanced manufacturing applications. Equipped with a high-speed 18,000 RPM HSK-A63 spindle, trunnion-style table, and advanced probing systems, this machine delivers excellent accuracy, flexibility, and productivity. Ideal for aerospace, medical, and precision component manufacturing, this 5-axis machining center is available at European Machine Tools.
Control System:
- HEIDENHAIN TNC 640 CNC Control
- Electronic handwheel included
- Advanced 5-axis machining capability
Machine Travels:
X-Axis: 24.6”
Y-Axis: 17.7”
Z-Axis: 15.7”
Table / Work-holding:

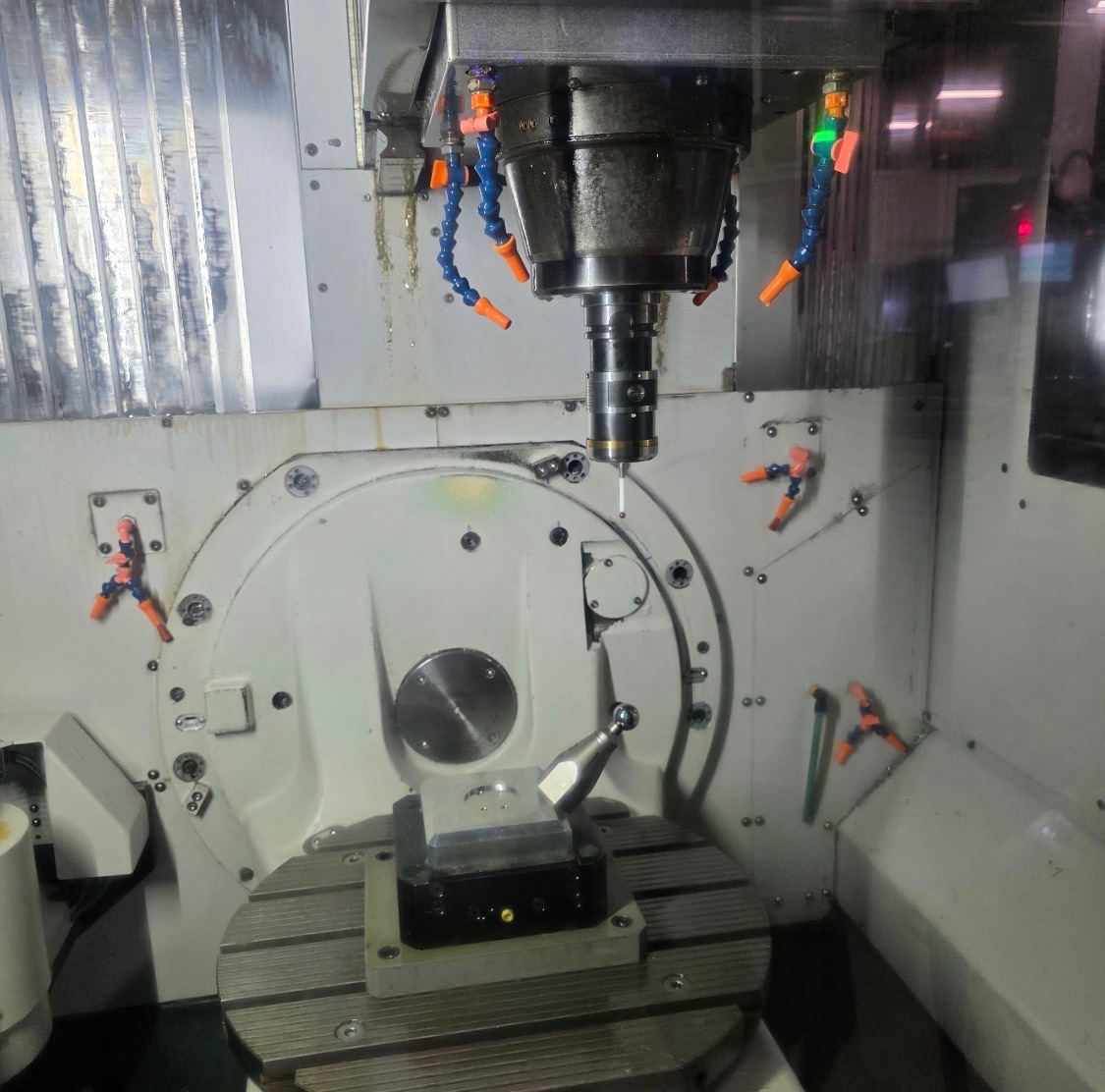

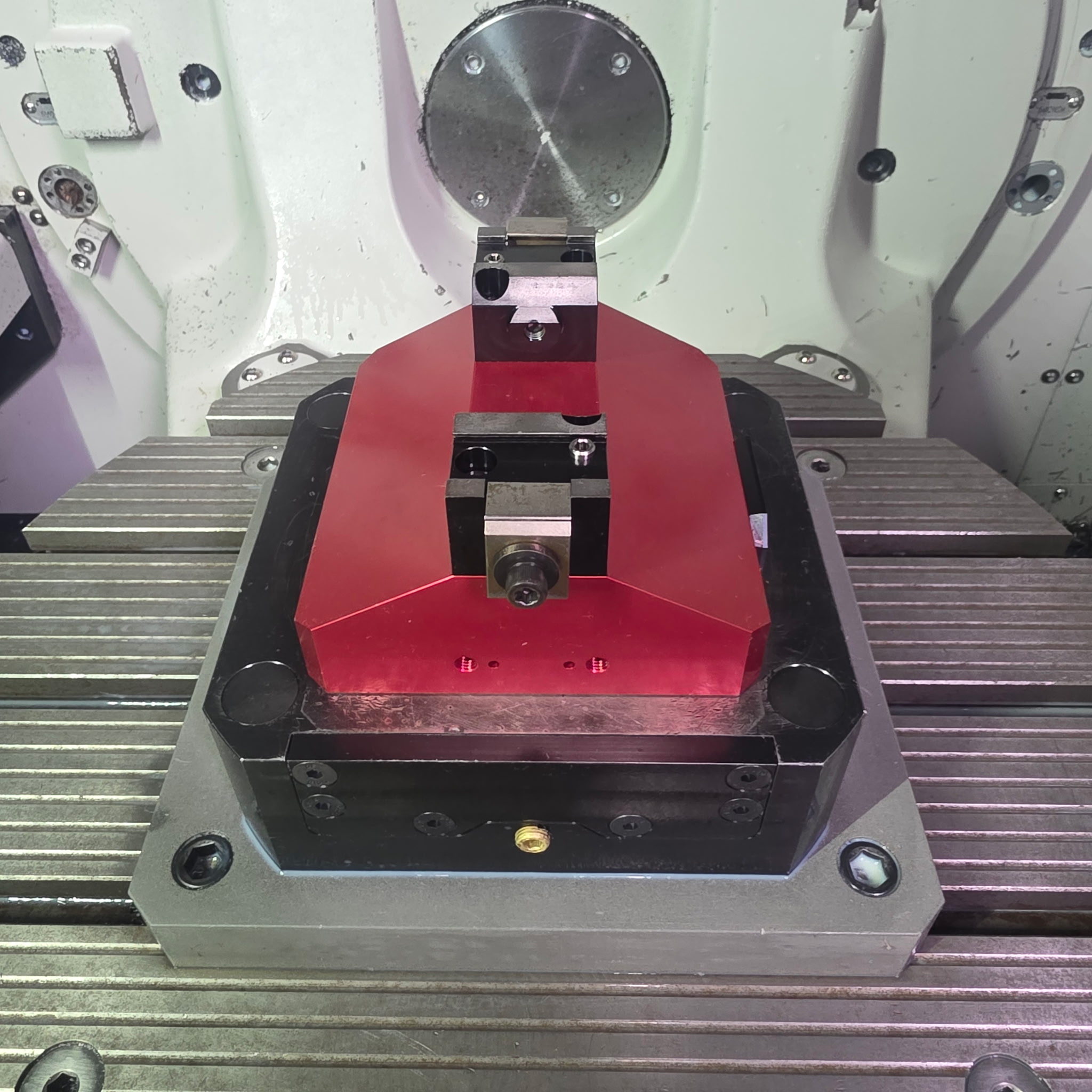

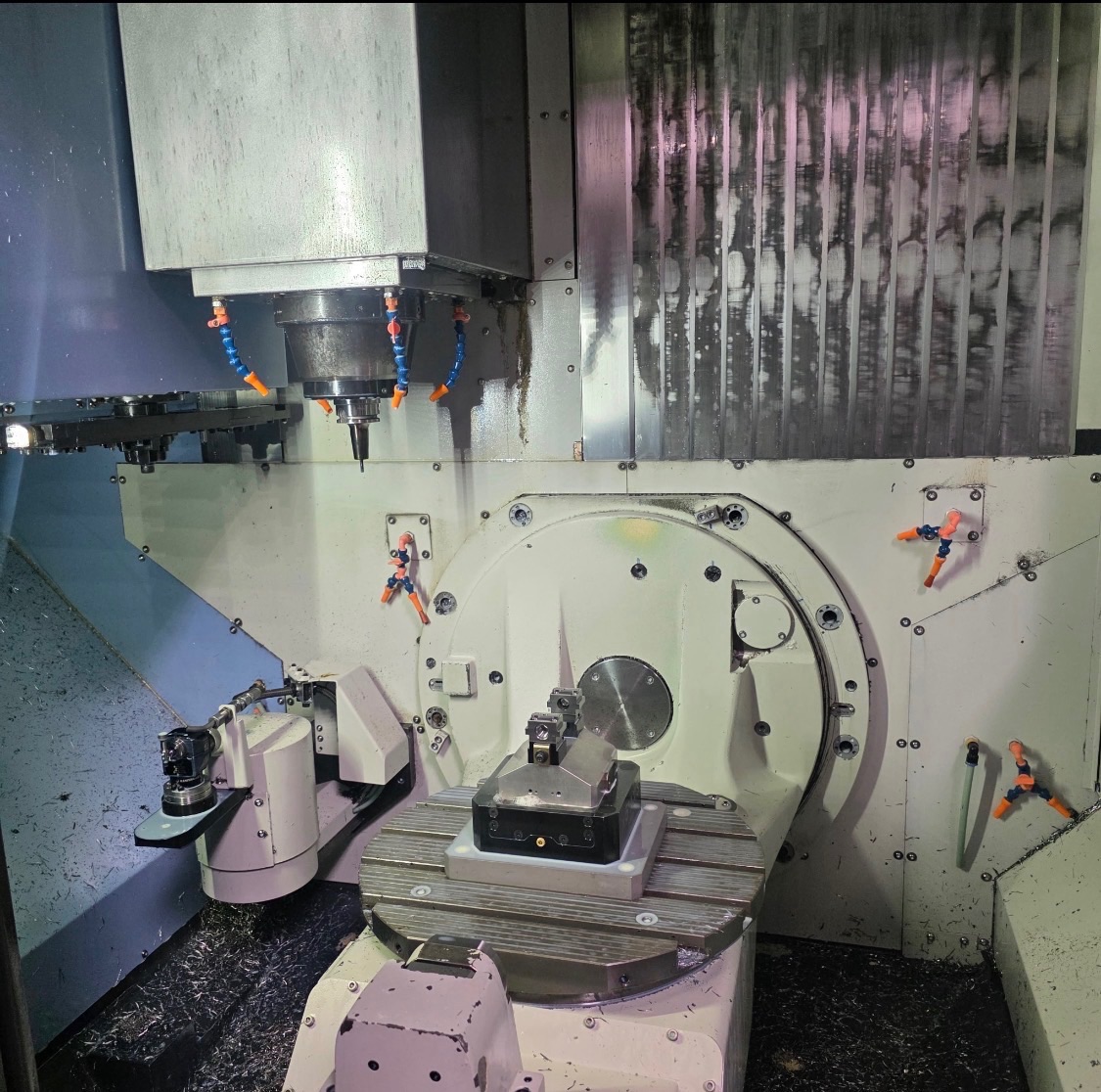

- Trunnion style 5-axis table
Table size: 19.7” × 19.7”
Maximum table load: 882 lbs
Axis Movement:
B-Axis: +110° / -30°
C-Axis rotation: 360°
Spindle:
Spindle speed: 18,000 RPM max
Spindle taper: HSK-A63
- Equipped with through spindle coolant and through air capability
Feed Rates:
- Rapid traverse (X/Y/Z): 1,575 IPM
Tool Changer:
- Automatic tool magazine included
Chip Management:

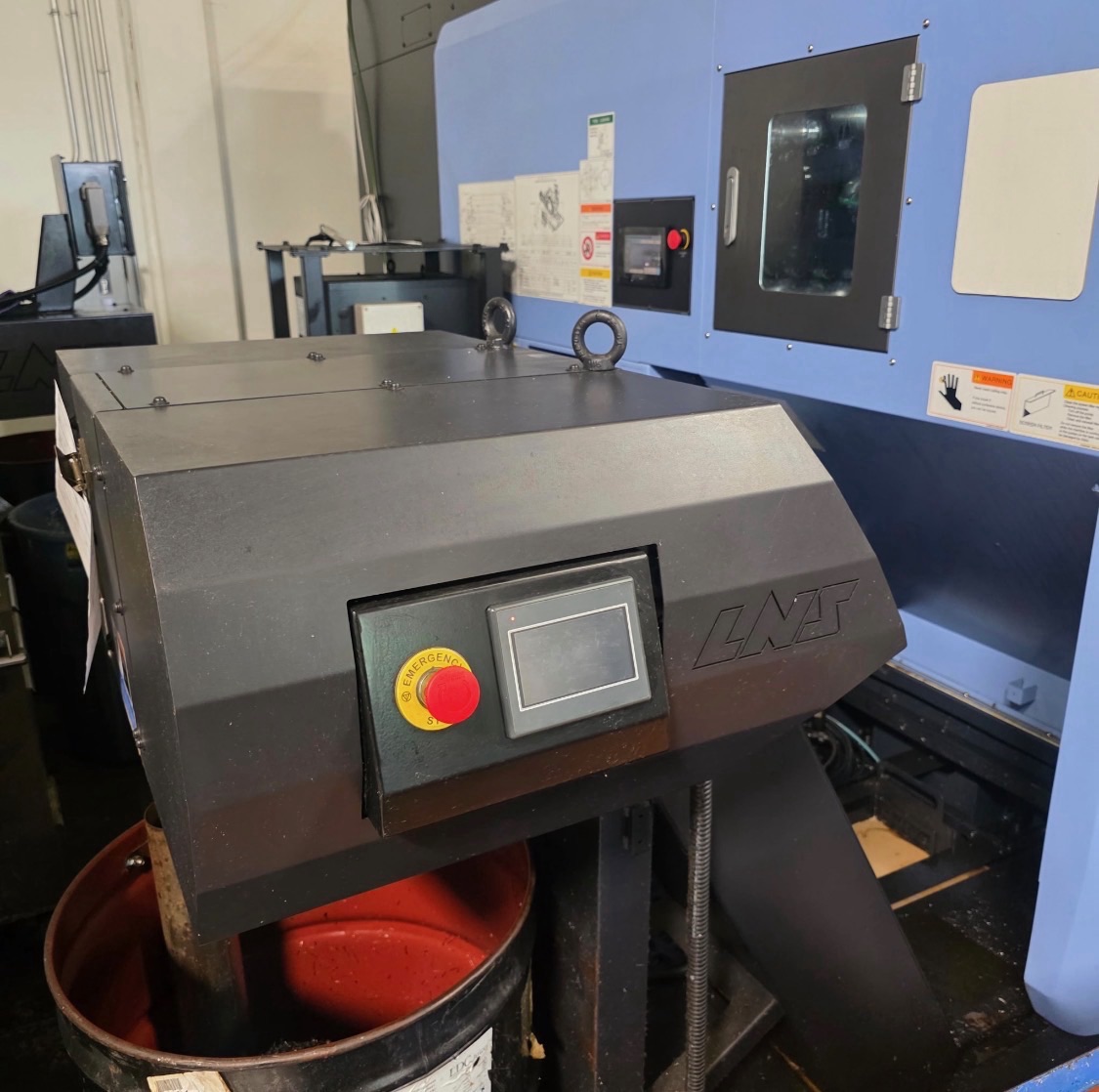

- Chip conveyor system
Equipped With:
- Heidenhain TNC 640 CNC control
- Electronic hand wheel
- 5-axis trunnion table
- Touch probe system
- Tool laser measurement system
- Through spindle coolant (CTS)
- Through air capability
- Chip conveyor
- 120 tool changer
Additional Features

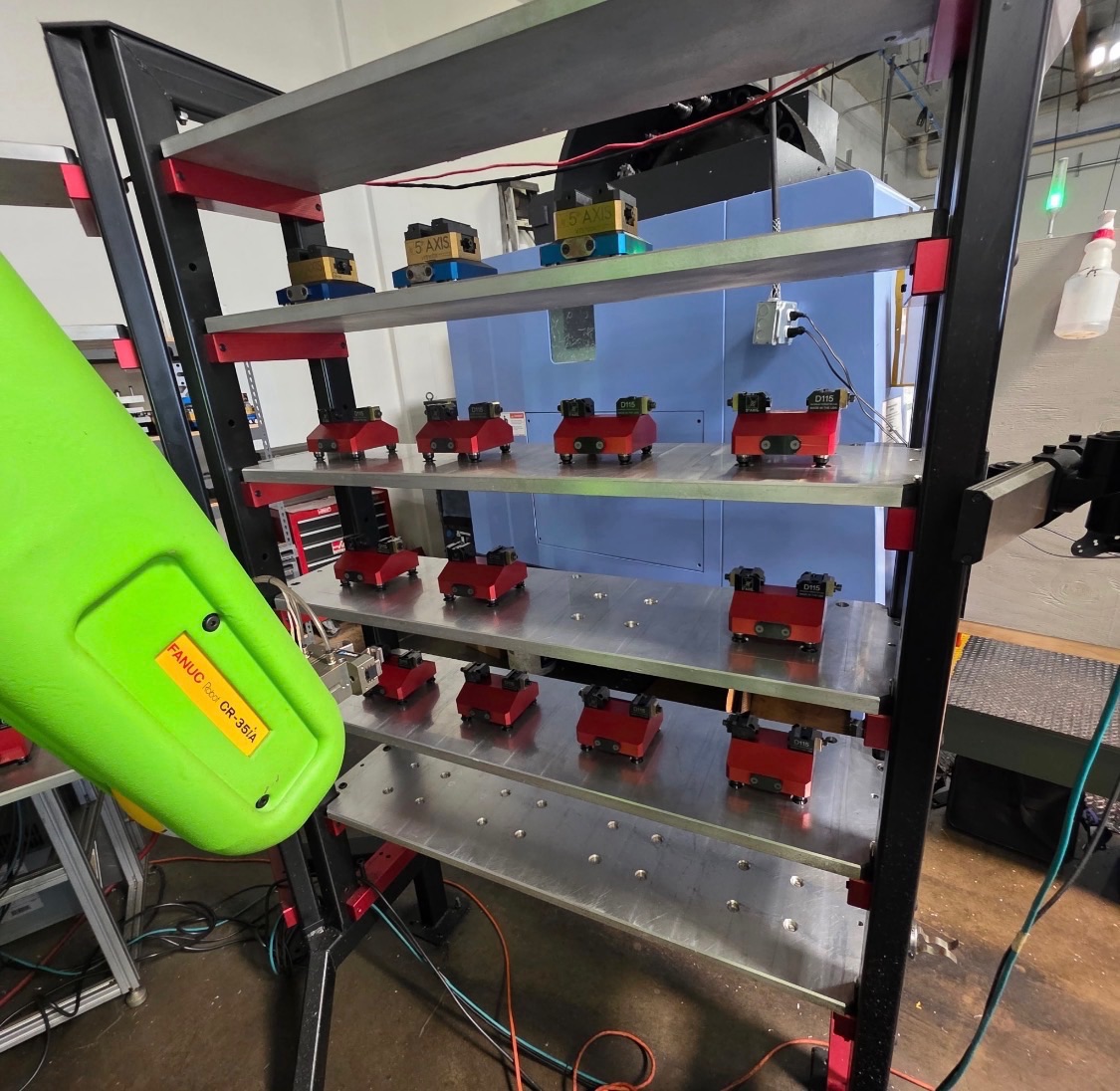

- 48 pallet station system

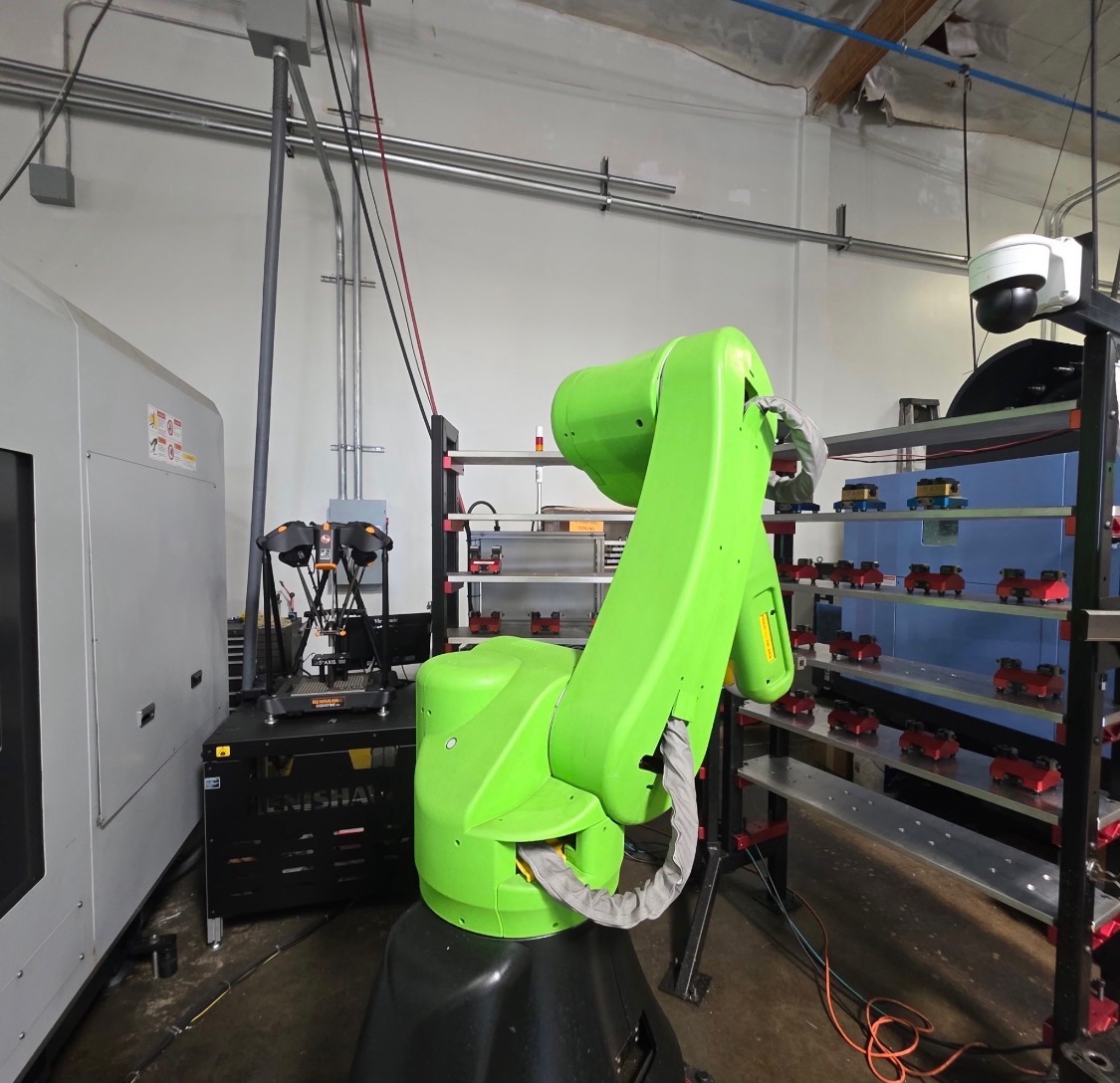

- 1 × FANUC robot automation system
- Robot lifting capacity: 35 kg
- Machine equipped with glass scales for high accuracy
** Machine currently under power and available for inspection
** Excellent part tolerance capability – must be seen under operation
Applications:
- Aerospace components
- Medical device manufacturing
- Precision machining
- Complex multi-axis parts
- Mold and die work
Inspection and Sales Information:
Machine is offered subject to availability, prior sale, and terms & conditions of European Machine Tools Sales Agreement.
All details listed above are deemed correct to the best of our knowledge; however, it remains the buyer’s responsibility to verify all specifications.
Accordingly, we encourage an under-power inspection of the machine(s) and accessories prior to purchase.
