Used 2006 Hermle C40U Dynamic 5-Axis CNC Machining Center for Sale

Machine Overview

The 2006 Hermle C40U Dynamic 5-Axis CNC Machining Center is a high-performance machining center designed for precision, efficiency, and complex multi-axis machining applications. Built by Hermle, the C40U Dynamic combines a large work envelope with an NC-controlled swiveling rotary table and simultaneous 5-axis machining capability for demanding production environments.

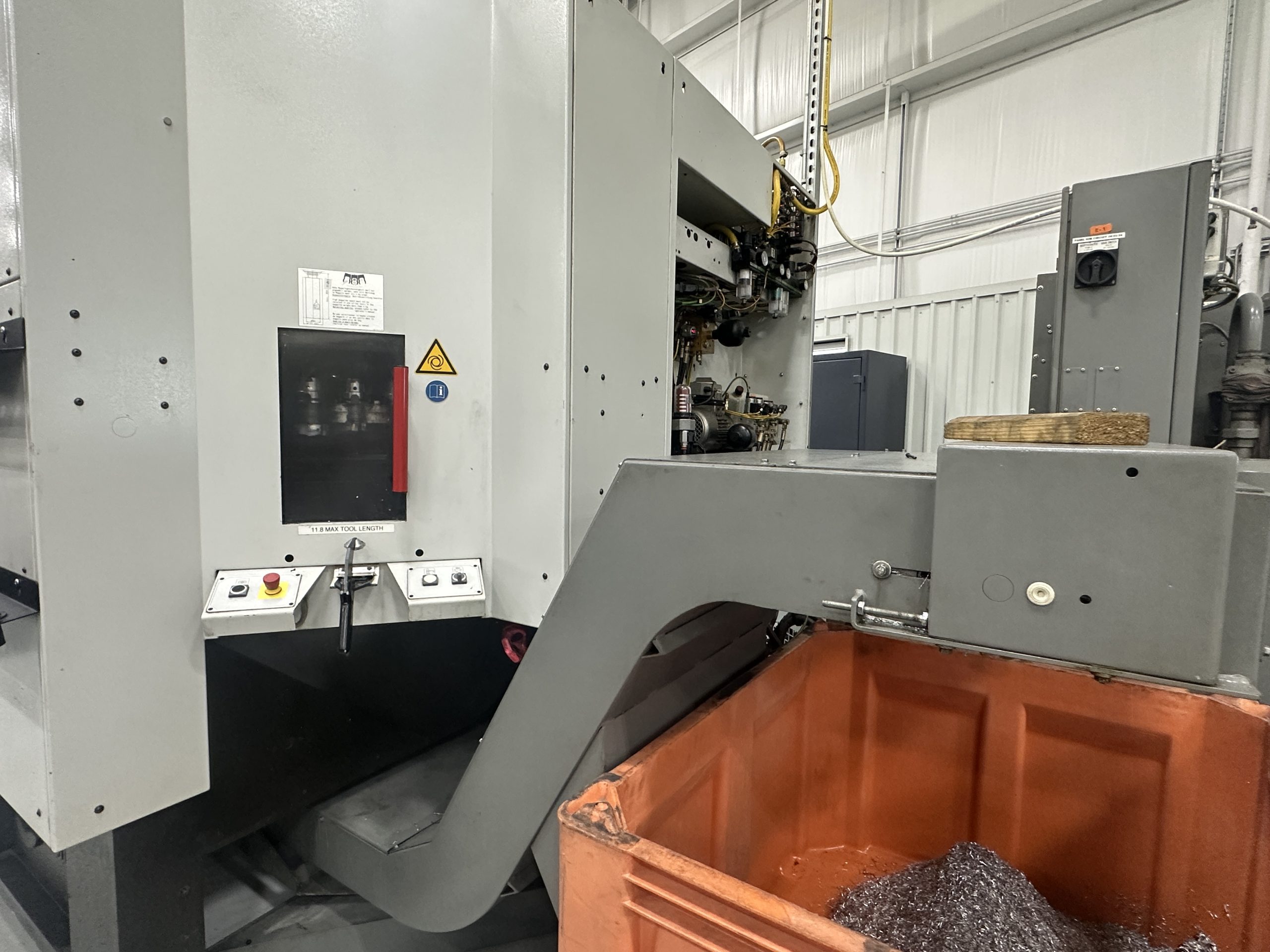

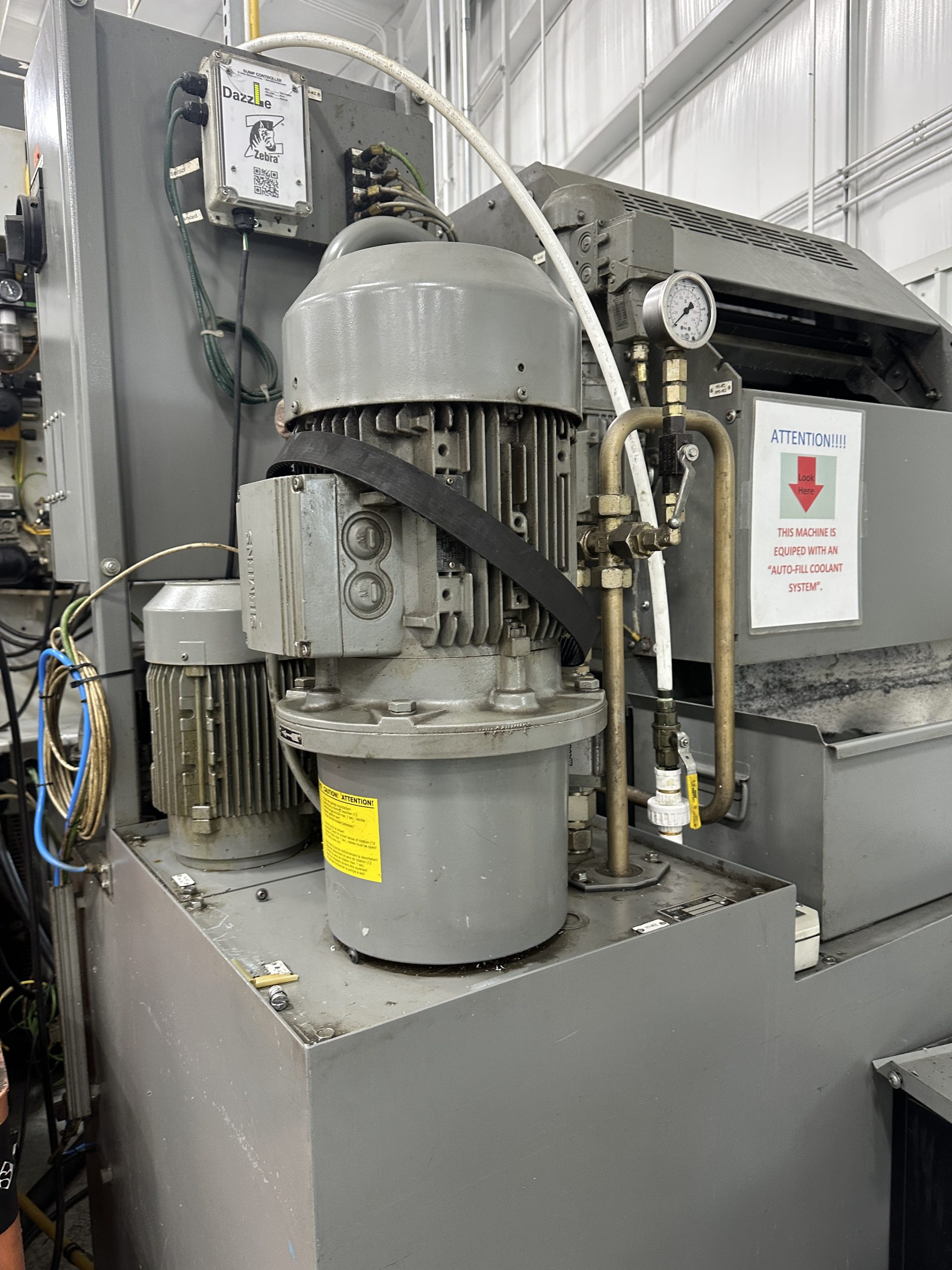

This machine is equipped with a 10,000 RPM HSK-A63 spindle, delivering 32 kW of spindle power and 200 Nm of torque. The machine features 850 mm X-axis, 700 mm Y-axis, and 500 mm Z-axis travel, along with rapid traverse rates of 60 m/min. A 38-pocket automatic tool changer, Renishaw MP40-2LS probing system, chip conveyor, and auto-fill coolant system further enhance its production capabilities.

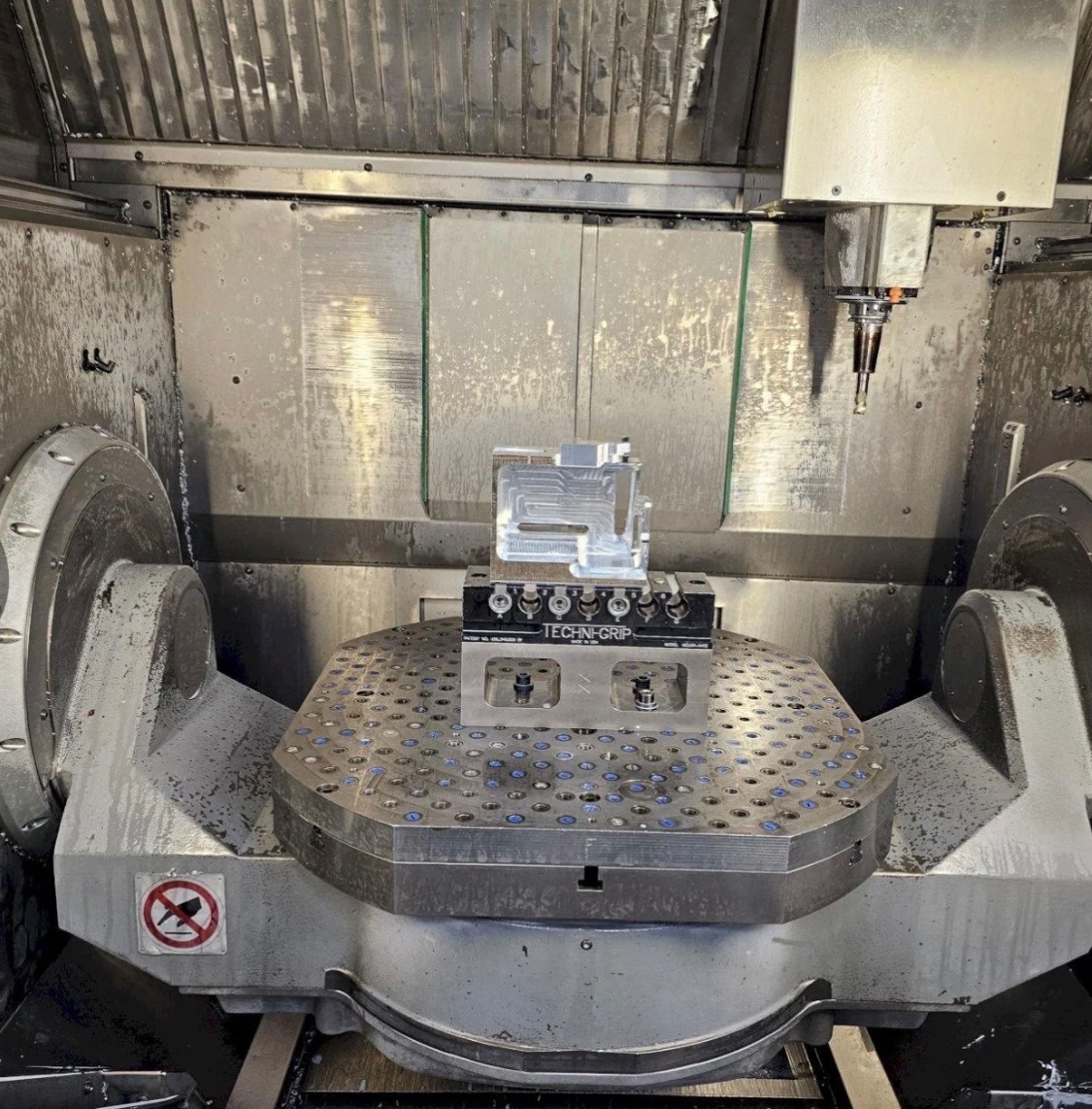

The NC-controlled swiveling rotary table provides a 700 x 700 mm clamping surface, a maximum table load of 1,400 kg, and high-speed A- and C-axis positioning for complex 5-axis machining.

Specifications

Manufacturer: Hermle
Model: C40U Dynamic
Year: 2006
Machine Type: 5-Axis CNC Machining Center
Configuration: 5-Axis
Control: Heidenhain iTNC 530

X-Axis Travel: 850 mm
Y-Axis Travel: 700 mm
Z-Axis Travel: 500 mm
Rapid Traverse X/Y/Z: 60 m/min
Acceleration X/Y/Z: 10 m/s²
Feed Force X/Y/Z: 8,500 N

Spindle Speed: 10,000 RPM
Spindle Taper: HSK-A63
Spindle Power: 32 kW
Spindle Torque: 200 Nm

Tool Changer: 38-Pocket Automatic Tool Changer
Chip-to-Chip Time: Approx. 4.5 seconds
Maximum Tool Length: 300 mm
Maximum Tool Diameter: 90 mm
Maximum Tool Diameter with Adjacent Pockets Empty: 125 mm
Maximum Magazine Load: 152 kg

Rotary Table: NC-Controlled Swiveling Rotary Table
Rotary Table Diameter: 800 mm
Clamping Surface: 700 x 700 mm
Table Collision Circle: 800 mm diameter
Table Swivel Range: +25° / -110°
Table Drive: Torque Motor
A-Axis Speed: 25 RPM
C-Axis Speed: 65 RPM
Maximum Table Load: 1,400 kg
T-Grooves: 8 / 14H7

Coolant Capacity: 350 L
Mains Connection: 400 V / 60 Hz
Power Consumption: 43 kVA
Compressed Air: 6 bar
Machine Weight: Approx. 9.5 metric tons

Availability

Status: Call for latest inventory

PH: 262.327.0800

Note: Machine is subject to prior sale and terms outlined in the European Machine Tools Sales Agreement to best of our knowledge all details listed are deemed correct. It is the Buyer’s responsibility to confirm all details including condition, capacity, suitability or performance and we encourage an under power inspection of the machine(s) and accessories prior to purchase.

For pricing, availability, additional specifications, inspection information, or more information about this 2006 Hermle C40U Dynamic 5-Axis CNC Machining Center, contact European Machine Tools.
