1 Used DMU125P Deckel Maho DMG MORI 5 AXIS TNC-CNC Heidenhain

Machine manufactured in Pfronten, Germany

X-travel               49.2” / 1.250mm

Y-travel               34.6” / 880mm

Z-travel               31,5” / 800mm

Head-The Swivel motion in completed in 4 seconds (at CAT40)

By a repeat accuracy of-/+,0.001mm in addition a configuration with modular drive

and integrated 2-Gear transmission, A Max Torque of 811.3 ft./lbs

Spindle:

The Power Spindle 5X torque-MASTER

A Max Torque of 811.3 ft./lbs

RPM 8.000 min

Main spindle/Power Spindle

Gear Power

Tool taper 40 Double gripper

Swivel A Table : 45/ 35 ° / (in degree)

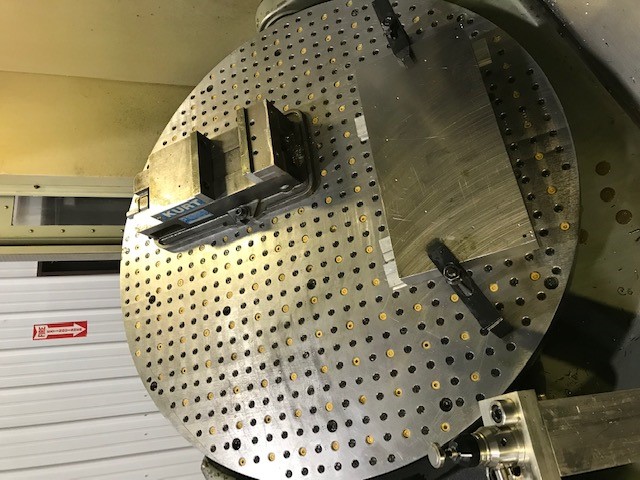

NC SWIVEL ROTARY TABLE, has bearings on both sides-

Clamping surface……………………….        39.37″ diameter (1,000 mm)

Maximum table load…………………………..   2,205 lbs (1,000 kg)

Rapid speed rotary axis………………………. 5.3 rpm

Rapid speed swivel axis……………………….   5.6 rpm

Rotation range………………….   360 x 0.001 degree (Full 4th axis)

Swivel angles   To spindle -45 degrees, from working spindle +30 degree

Rotatable C: 360° fully 4th

Number of tool position:60

Tool taper : CAT40

Equipment

Documents

High pressure coolant 50 bar

Through spindle coolant

Elektr. hand wheel

Rotary screen

3 D -probe Heidenhain

Heidenhain tool setting TT130

Chip conveyor

-HEIDENHAIN GLASS SCALES X/Y/Z AXES DIRECT PATH MEASURING SYSTEM-

Input Resolution……………………………………….   0.001 mm

-HEIDENHAIN ROTARY ENCODERS B/C AXES DIRECT PATH MEASURING SYSTEM-

Input Resolution………………………………………. 0.001 mm

More Pictures or Videos Feel free to Call us.

Feel free to call us or Visit us.

Machine Under Power: Yes

Books Info with Machine: Yes

Specification are subject to verification,

Subject to Prior sales, Please call us if any Questions

Thank you,

Options:
